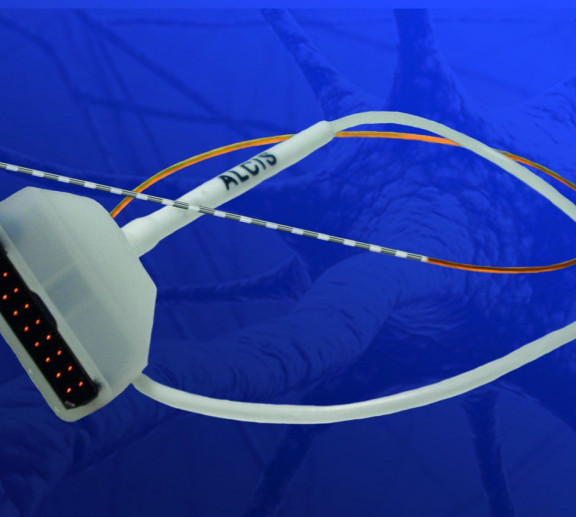

ALCIS Deep Intracerebral Electrodes are multi-contact electrodes intended for SEEG recording and brief stimulation in the context of pre-surgical diagnosis of epilepsy, as well as for thermocoagulation, as a therapeutic alternative to conventional surgery.
Alcis electrodes are available in standard, high resolution, extended "pitch" and
micro-macro ranges.
The standard range meets the majority of exploration needs.
Alcis has created a high resolution gamut, allowing the EEG signal to be localized more
finely over an equivalent scan length.
The long "pitch" range allows a length, offers a greater exploration length for an identical
number of contacts.
Micro-macro electrodes make it possible to make EEG recordings at 2 different scales: micro
and macro.
Main Features :
Implantable diameter: 0.8mm
Number of contacts: up to 18
Material: PtIr
Exploration length: up to 120mm
Duration of implantation: up to 2 weeks
Packaging: sterile unit
Distal part: distal contact, perfectly smooth surface,
reinforced semi-rigid structure
Alcis deep coagulation electrodes are intended for performing “in-situ” thermocoagulation, in association with an RF generator, for therapy. It is an alternative to conventional epilepsy surgery (especially for patients where conventional surgery is excluded).
Alcis offers a global coagulation solution that includes the following
devices:
Connection box ref. 2069-BC3-KIT2 including:
The box ref. 2069-BC3
An extension cable ref. 2069-CE-18c-150-B-FB5
A battery charger and 2 batteries
Link ref. 2023-CE-L2
In addition to our electrodes, we have a range of accessories allowing the installation of our product. You will find below, the different products manufactured by ALCIS.

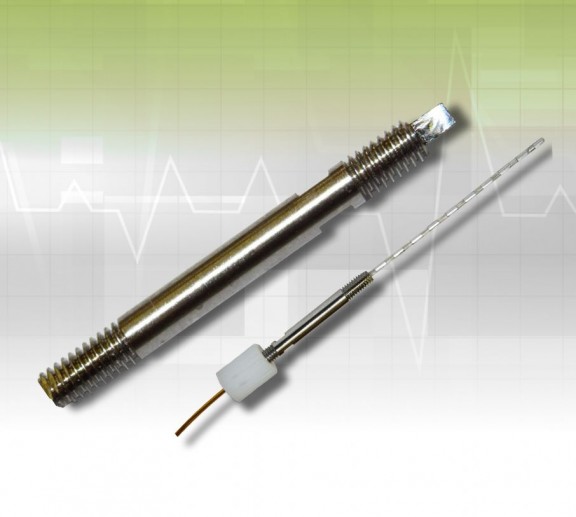

Standard and short guide screws allow deep electrodes and stylet
implantation
with maximum guiding effect and allow positioning of robots.
The ALCIS stereotaxic guides have been designed to guide the stereotaxic accessories type drill, biopsy needle, screwdriver, etc. in order to perform the surgical procedure as precisely as possible. They are compatible with the main stereotaxic systems on the market, stereotaxic frames as surgical robots (contact us to find out the compatible systems).

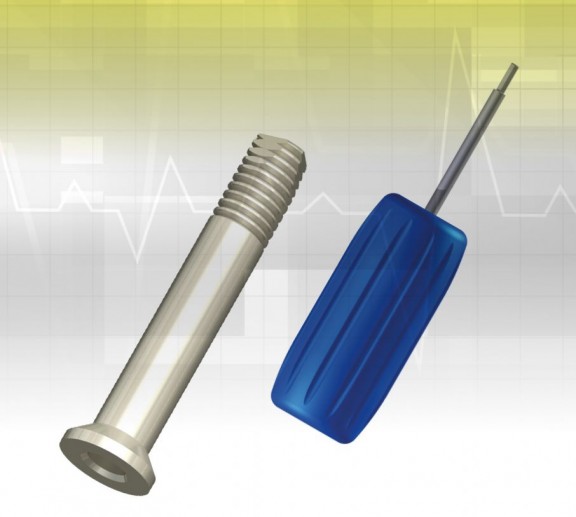

The short guide screws:
The short guide screws can be used as a bone marker during
surgeries
performed with robots. These screws are available in several lengths in sequence
to suit the patient's anatomy.
